28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment

큰 이미지 : 28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Jiayao
인증:	ISO9001:2008 COC
모델 번호:	바이오닉 트리 타워

결제 및 배송 조건:

최소 주문 수량:	4톤
가격:	US$1400-1600,1-100Tons;US$1000-1200,>=100 Tons
포장 세부 사항:	나무 상자에 포장하거나 아연 도금 시트와 함께 묶임
배달 시간:	15일
지불 조건:	신용장, 전신환
공급 능력:	달 당 500 톤

접촉 지금 챗팅하세요

28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment

설명

제품명:	자연 나무의 미학을 결합한 28M 바이오닉 트리 타워	재료:	ASTM A36 A572 Gr50
너트 및 볼트:	등급 8.8/6.8/4.8	인증:	ISO9001:2008 COC
키:	9-40m	기준:	ANSI/TIA-222-G/H/F, EN 1991-1-4 및 EN 1993-3-1
풍속:	0-300km/h	아연 도금 표준:	ASTM A123/ISO 1461
환경에 미치는 영향:	친환경	부식 방지 처리:	뜨거운 담근 아연 도금
일생:	20년 이상	용접:	AWS D 1.1
유형:	인공 나무 구조	맞춤화:	다양한 색상과 크기로 제공
애플리케이션:	도시와 농촌 지역 모두에 적합	작동 소음:	낮은 소음 배출량
설치 위치:	도시 환경	설치위치:	도시 지역 및 도심
위치:	도시 환경
강조하다:	28M bionic tree tower modular construction , bionic tree tower versatile infrastructure , natural tree aesthetics modular tower

28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment 0

JIAYAO CO., LTD

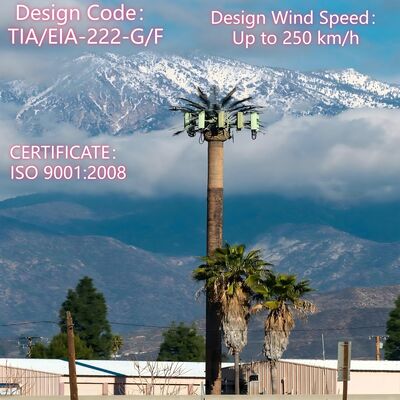

Bionic tree tower, also known as an artificial tree tower, is an innovative structure designed to replicate the look of natural trees while serving critical infrastructure purposes. Unlike traditional towers that often stand out visually, this tower blends seamlessly into landscapes, making it a preferred choice for areas where aesthetic harmony and functionality are both priorities.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

Core Structural & Design Features

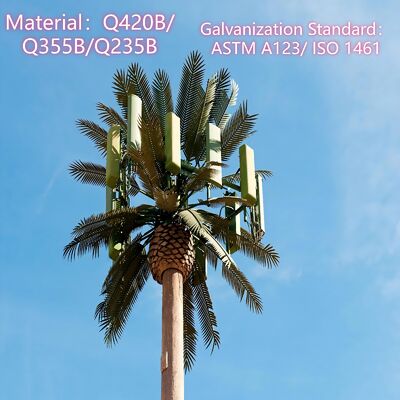

Tree-Like Appearance: It features artificial trunks, branches, and even leaves made from durable materials like fiberglass or high-strength plastics, closely resembling real trees in shape, color, and texture.
Modular Construction: The tower is built with modular components, allowing customization in height (typically 5m to 30m) and “tree species” to match local flora, such as pine, palm, or oak trees.
Integrated Functionality: Equipped with hidden platforms, antenna mounts, and cable management systems to support telecommunications equipment (5G/4G antennas, microwave devices), environmental sensors, or even small wind/solar energy harvesters.

Key Materials & Manufacturing Standards

Primary Materials: High-quality fiberglass, UV-resistant plastics, and galvanized steel for the internal support structure, ensuring both durability and corrosion resistance.
Manufacturing Compliance: Follows industry standards like ASTM D256 for impact resistance of plastic components and ISO 1461 for galvanization, guaranteeing long-term performance in outdoor conditions.
Aesthetic Details: Leaves and branches are designed to withstand extreme weather (high winds, heavy snow) and maintain colorfastness for years, using advanced pigmentation techniques.
