| 재료: | 스틸 앵글 Q235B Q355B Q420B | 자격증: | ISO 9001 : 2008 |
|---|---|---|---|
| 키: | 5-100M, 맞춤형 가능 | 일생: | 30년 이상 |
| 애플리케이션: | 통신, 송전 | 정격전압: | 10KV 66KV 132KV 220KV 380KV 400KV 750KV 1000KV |
| 디자인 코드: | ANSI/TIA-222-G/H/F, EN 1991-1-4 및 EN 1993-3-1 | 호드 표면 처리: | 용융 침지 아연 도금 |
| 설치: | 볼트로 결합 | 색상: | 맞춤형 |
| 강조하다: | 220KV galvanized power transmission tower,500KV suspension utility pole,angle steel transmission tower |
||
| Height | From 10M-120M or according to client’s requirement |
| Suit for | Electric Power Transmission and Distribution |
| Shape | Polygonal,Conical |
| Material | Normally Q235B Q355B/A36,Yeild Strength≥235MPa |
| Q345B/A572,Yeild Strength≥345MPa | |
| As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400 | |
| Power Capacity | 10kV to 600kV |
| Tolerance of the dimension | According to client’s requirement |
| Surface treatment | Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement |
| Joint of Poles | Slip joint, flanged connected |
| Standard |
ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1 |
| Length of per section | Within 14M once forming |
| Welding Standard | AWS D 1.1 |
| Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages |
| Packages | Packing with plastic paper or according to client’s requirement |
| Life Period | More than 25 years, it is according to installing environment |
Installation, construction, testing
Style display
Accept customer customization requirements

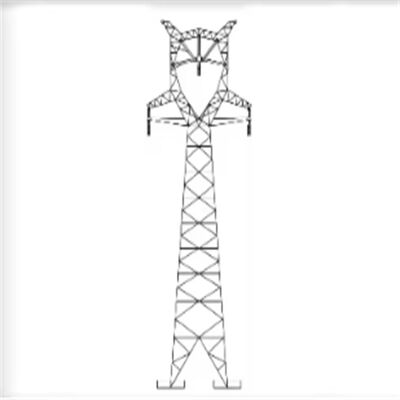

Wine cup Type
Usually used for 110 kVand above voltage levelpower transmission linesespecially suitable forheavy ice area or multi-thunder area.

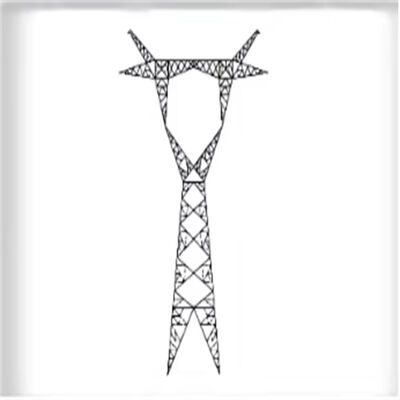

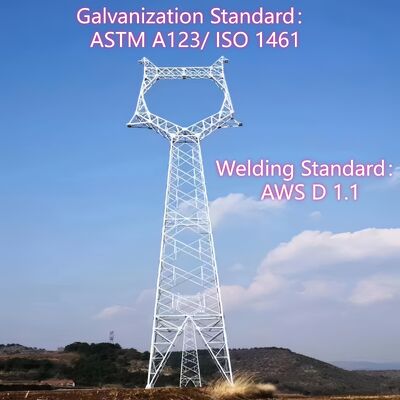

Cat's Head Type
It is a common towertype for power trans-mission lines of 110 kVand above voltage level.lts advantage is that itcan effectively save theline corridor.
'T' 'F''H'Type
Mainly used as tension-resistant tower and cornertower, it is the commonlyused tower type for 220kVand above voltage levelpower transmission lines.
Drum Type
It is a double circuit towercommonly used towertype, the conductor isdrum-shaped arrangementand thus the name.
