제품 상세 정보:
접촉
지금 챗팅하세요
|
| 기준: | ANSI/TIA-222-G/H/F, EN 1991-1-4 및 EN 1993-3-1 | 인증: | ISO9001:2008 SGS COC |
|---|---|---|---|
| 아연도금 기준: | ASTM A123/ ISO 1461년 | 기본: | 등급 8.8/6.8/4.8;DIN7990, DIN931, DIN933;ISO4032, ISO4034 |
| 모델 번호: | 3개 다리 앵귤러 타워 | 제품명: | 3 다리 와이파이 5G 네트워크 격자 각 강철 핫 디프 젤바니지 통신 라디오 신호 타워 |
| 재료: | 스틸 앵글 Q235B Q355B Q420B | 키: | 5-100M, 또는 맞춤형 |
| 풍속: | ≥60m/s | 색상: | 은색 또는 RAL 색상 별표, 맞춤형 |
| 일생: | 20년 이상 | 구조: | 3개의 지원 다리 |
| 어플리케이션: | 이동 통신 타워 | ||
| 강조하다: | 3 legged angular steel communication tower,28m mobile network steel tower,wind resistant coastal communication tower |
||
| Design | ||
| 1. Design Code | ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1 | |
| Structure Steel | ||
| 2. Grade | Mild Steel | High Tensile Steel |
| GB/T 700:Q235B, Q235C,Q235D | GB/T1591:Q355B, Q355C,Q355D | |
| ASTM A36 | ASTM A572 Gr50 | |
| EN10025: S235JR, S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |

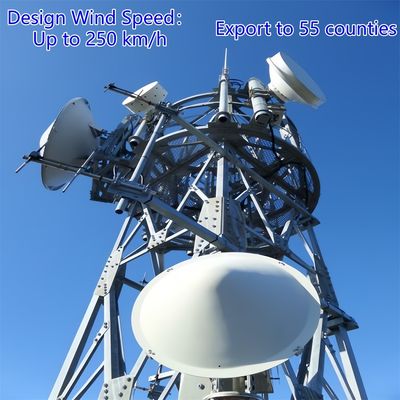

| 3. Design Wind Speed | Up to 250 km/h | |
| 4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
| 5. Tension strength (Mpa) | 360~510 | 470~630 |
| 6. Yield strength (t≤16mm) (Mpa) | 235 | 355 |
| 7. Elongation (%) | 20 | 24 |
| 8. Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | 27(20°C)---Q345B(S355JR) |
| 27(0°C)---Q235C(S235J0) | 27(0°C)---Q345C(S355J0) | |
| 27(-20°C)---Q235D(S235J2) | 27(-20°C)---Q345D(S355J2) | |
| Bolts & Nuts | ||
| 9. Grade | Grade 4.8, 6.8, 8.8 | |
| 10. Standards for mechanical properties | ||
| 10.1 Bolts | ISO 898-1 | |
| 10.2 Nuts | ISO 898-2 | |
| 10.3 Washers | ISO 6507-1 | |
| 11. Standards for Dimensions | ||
| 11.1 Bolts | DIN7990, DIN931, DIN933 | |
| 11.2 Nuts | ISO4032, ISO4034 | |
| 11.3 Washers | DIN7989, DIN127B, ISO7091 | |
| Welding | ||
| 12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |
| 13. Standard | AWS D1.1 | |
| Galvanizing | ||
| 14. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
| 15. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
What is 3 legged angular steel tower body?
What is 3 legged angular steel tower foot?
What is ladder and cable tray of 3 legged angular steel tower?

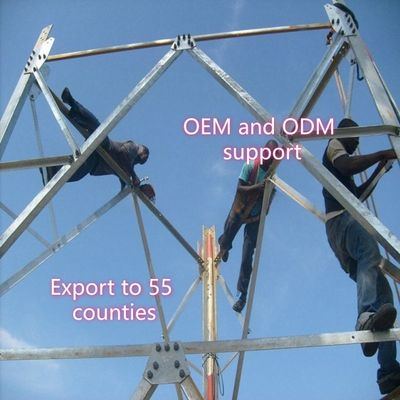

How to install 3 legged angular steel tower?
Galvanizing angular steel tower testing.
Please Click Here For More Information!!!!!!
Please Click Here For More Information!!!!!!
Customized product types & advantage
Monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt or overlap(slip connection). It has the characteristics of easy installation and can adapt to a variety of complicated field site.
JIAYAO CO., LTD. is a professional telecom tower manufacturer and approved by ISO9001. We are committed to providing customers with the most optimized solutions and the best communication tower. Many products have been exported to USA, Europe and other 55 different counties.
We specialize in designing and manufacturer of angle steel tower, tube steel tower, monopole tower, pine tree tower, guyed tower and guard tower. Our departments include design, R&D, inspection, laboratory, QC, galvanization and steel tower departments. Our raw materials come from famous steel mills in China: HBIS Group, Baowu Steel Group, Shougang Group.
If you need it, we will welcome you 24 hours a day!
담당자: Eric.Jia
전화 번호: +86-13903181586
